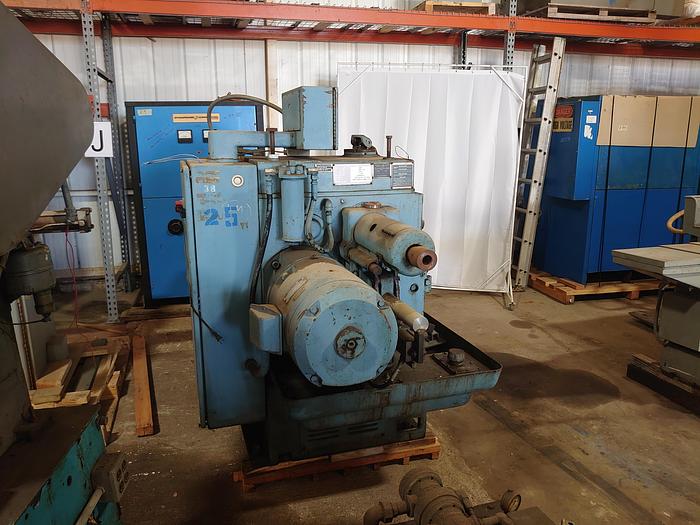

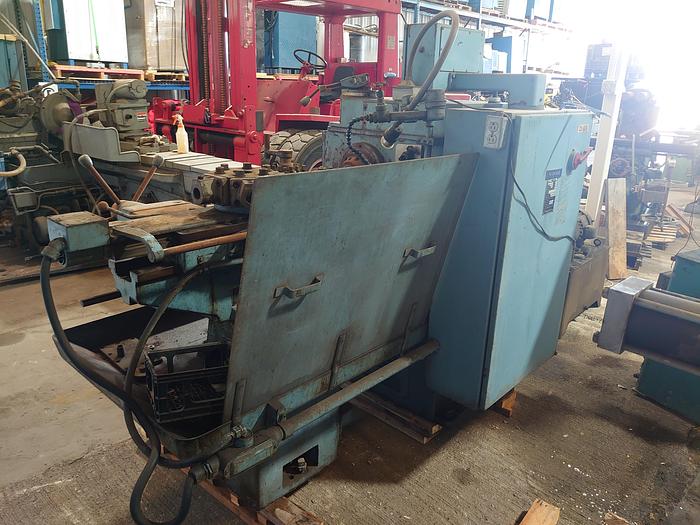

[ME-09] : Warner and Swasey M4630 Turret Lathe; Ram Type

[ME-09] : Warner and Swasey M4630 Turret Lathe; Ram Type

Manually operated Turret Lathe; Ram Type

Brand : Warner and Swasey

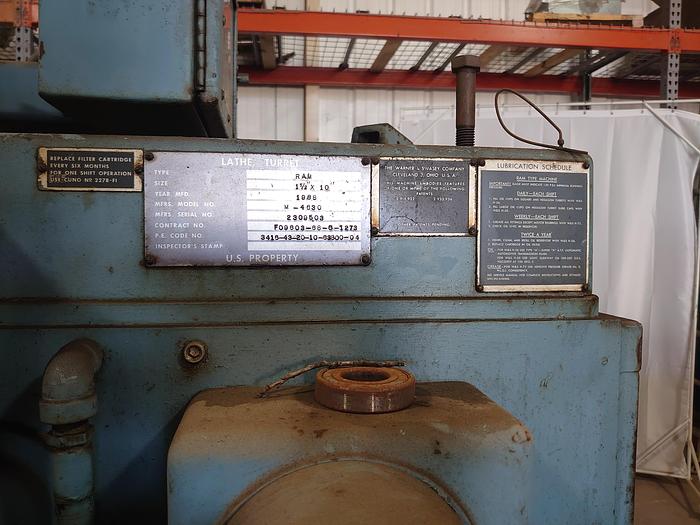

Model : No.3 M4630

Serial # : 2309503

Year : 1968

Type : RAM

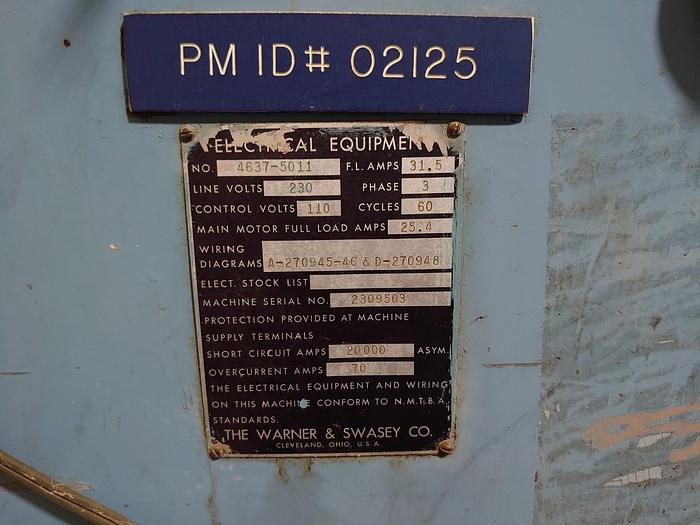

Triple Phase

F.L. Amps : 31.5

Line Volts : 230

Control Volts : 110

Cycles : 60

Short Circuit Amps : 20,000

Overcurrent Amps : 70

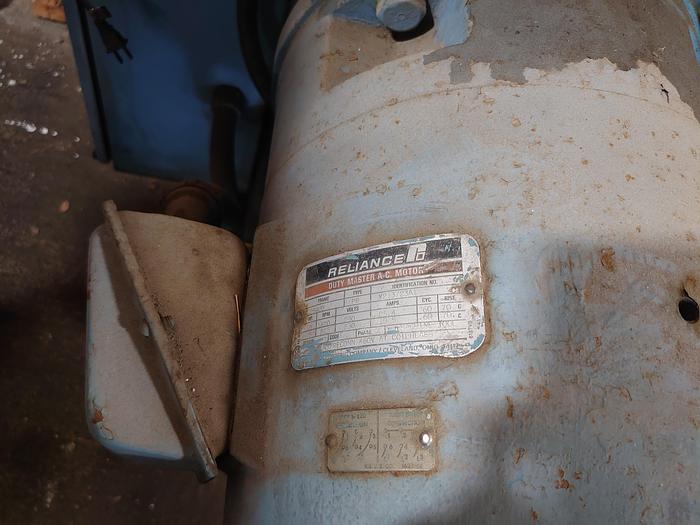

Main Motor Full Load Amps : 25.4

** General specifications are approximate and are subject to verification.

Swing over bed:15”

Swing over slide:7 ¾”

Spindle speeds: 16 from 45 to 2262 RPM

Tailstock: Turret, 6 Side

Threads: 35from 2 to 56

Feeds, Cross: 6 from .002 to .013

Feeds, Turret: 6 from .003 to .03

Spindle Nose : A6

Spindle Bore : 2"

RPM : 2262 RPM

Threading w/ qc box; Bar feed

Condition : Used; Sold 'As is' 'where is'.

FOB: San Antonio, TX 78225, USA Send your own LTL truck OR We can arrange shipping at cost + 15%

Shipping Dimensions (approx) : 72” H x 96” L x 60” W

Estimated Weight : 6,000 lbs.
