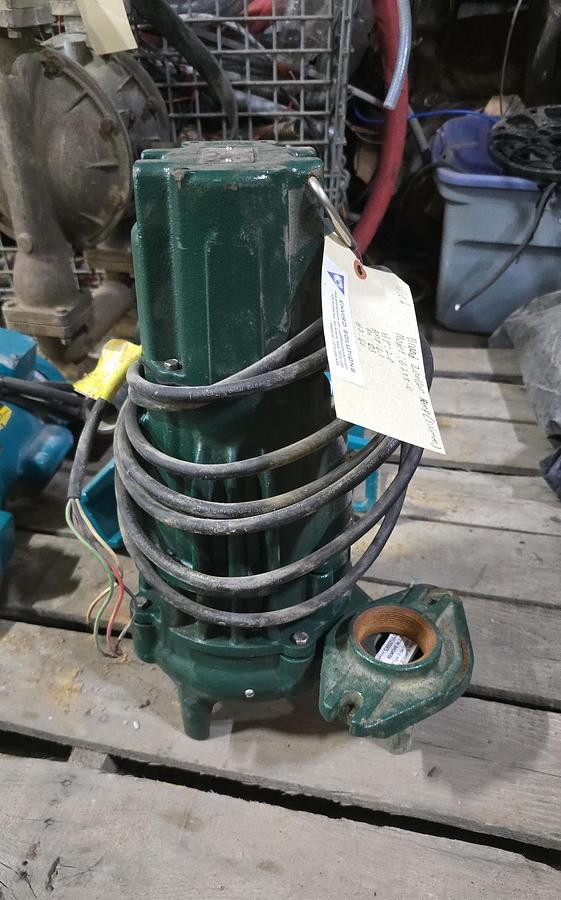

Zoeller 2.0HP Submersible Pump | Model: G295-C

Heavy duty construction, oversized bearings and balanced non-clogging vortex impellers allow these pumps to stand up to the highest heads and maximum f lows. Using Zoeller’s cool run design, with added fins to these pumps, lowering operating temperatures. The corrosion-resistant, powder coated epoxy finish and hermetically sealed, oil-filled motor add up to a long-lasting, trouble-free product.

• Oil-filled motor and cast iron motor housing for optimal heat dissipation which prevents the pump from overheating
• Nonautomatic pump that requires a control panel and switches to set the on / off levels
• Corrosion resistant cast iron vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
• Stainless steel screws, handle, and hardware to prevent rust and corrosion
• Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments

Specifications:

• VOLTAGE: 3ø, 460V, 60Hz
• HORSEPOWER: 2.0 HP
• AMPS: 6.1
• MOTOR TYPE: 3 Phase
• RPM: 3450 RPM
• MAX HEAD: 75'
• MAX FLOW RATE: 214 GPM
• SWITCH 'ON' LEVEL: 15 3/4"
• SWITCH 'OFF' LEVEL: 5 1/4"
• DISCHARGE SIZE: 2" or 3" NPT Female Flanged Vertical
• SOLIDS HANDLING: 2" Spherical Solid
• IMPELLER TYPE: Bronze, Non-Clogging Vortex
• CORD LENGTH: 20'
• CORD TYPE: 1 Ph: UL Listed 3-Wire Neoprene Cord and Plug. 3 Ph: 4-wire with No Plug.
• BODY CONSTRUCTION: Cast Iron
• MAXIMUM OPERATING TEMPERATURE: 130°F (54C
