630mm Filter Press Plate; [CGR] Tail Plate

630mm Filter Press Plate; [CGR] Tail Plate

Contact us for price

San Antonio, TX

orCall +1 (210) 696-6300

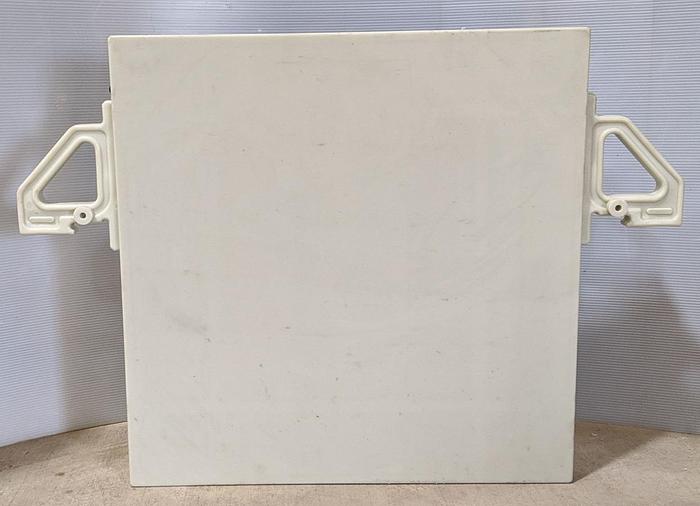

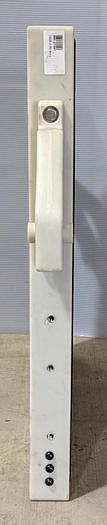

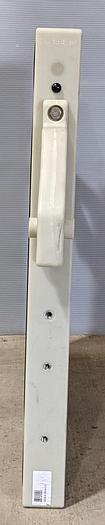

630mm Filter Press Tail Plate

Product: FPP-0630-G-E-T;

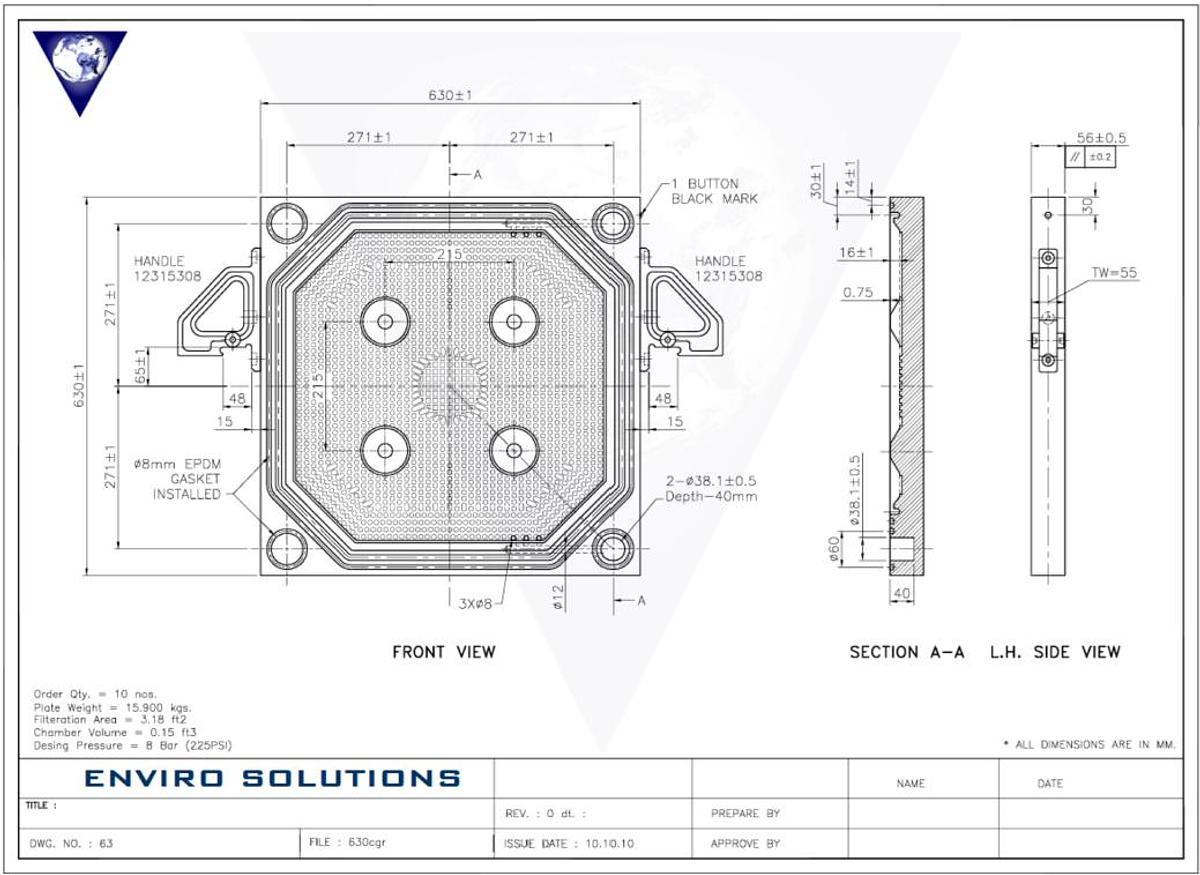

Size: 630mm x 630mm x 57mm

Plate Type: (G) Gasketed (CGR plates)

Placement Type: (E) End, (T) Tail

Filtration Area: 3.18 ft²

Chamber Volume: 0.15 ft³

Cake Size: 32mm

Feed Pressure: 225 PSI (8 bar)

Material of Construction: Virgin Polypropylene

*Delivery/Fabrication time for new plates is currently 6-7 weeks and subject to change.

For assistance in finding the correct filter plate for you, please do not hesitate to contact one of our representatives via telephone or e-mail.

To place an order, please fill out the corresponding plate forms and e-mail them to : sales@envirosolutions.com


ManufacturerEnviro Solutions
Chamber volume (ft³)0.15
Filtration area (ft²)3.18
Placement Type(E) End, (T) Tail
Plate typeGasketed (CGR)
Weight33.51 lbs. / 15.20 kg
Psi225 (8 bar)
