800mm Filter Press Plate; [CGR] Tail Plate

800mm Filter Press Plate; [CGR] Tail Plate

Contact us for price

Location:San Antonio, TX

orCall +1 (210) 696-6300

Description

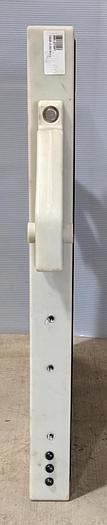

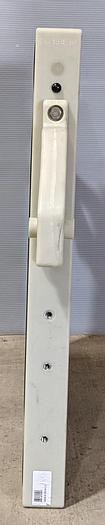

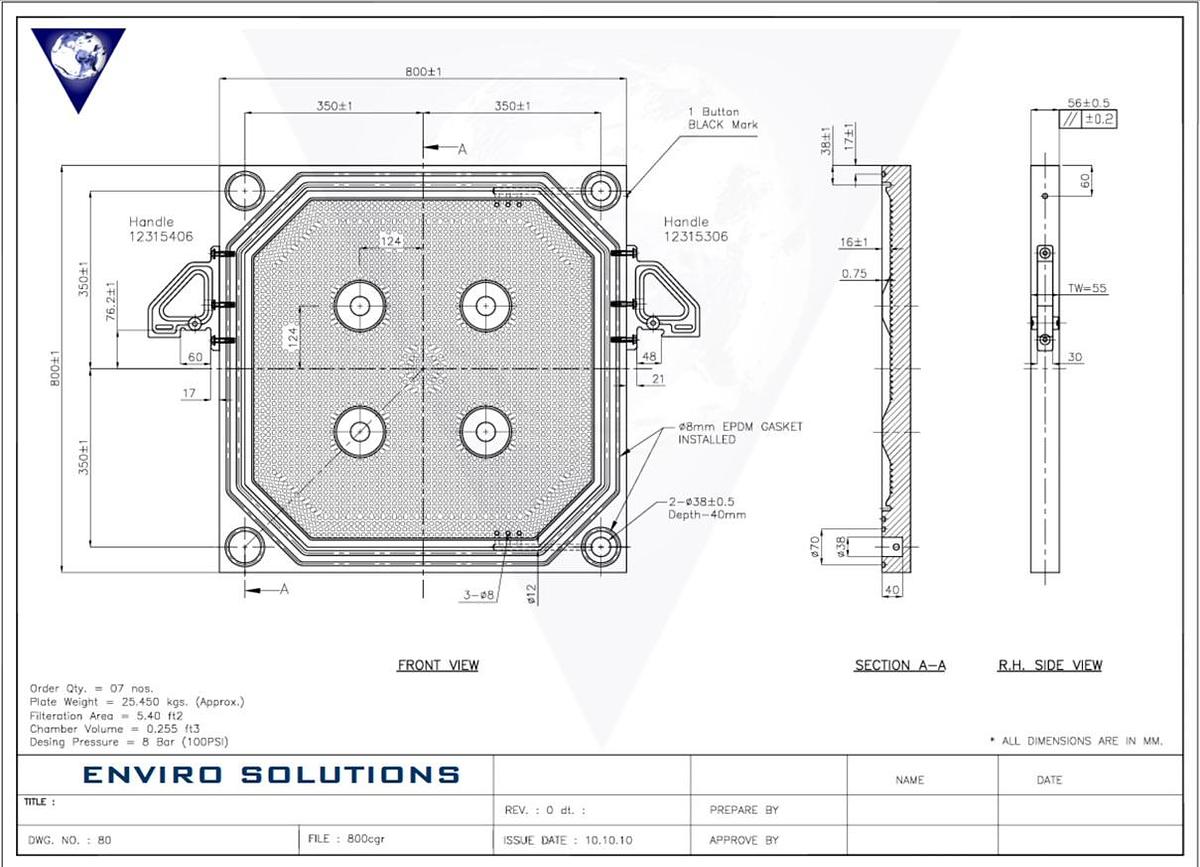

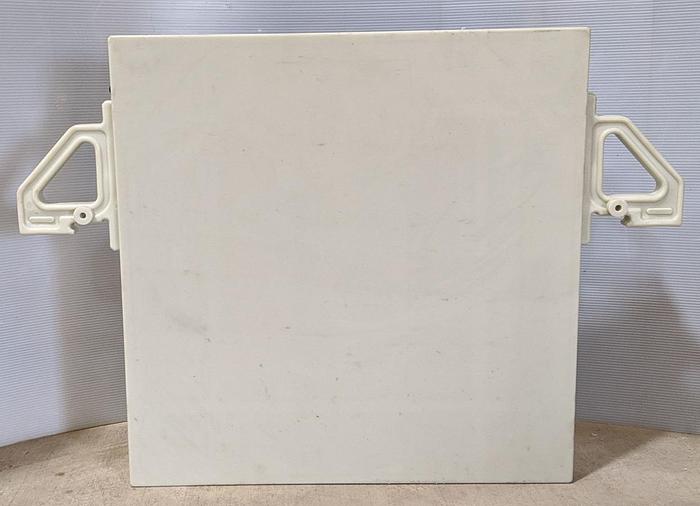

800mm Filter Press Tail Plate

Product: FPP-0800-G-E-T;


Specs

Size: 800mm x 800mm x 57mm

Plate Type: (G) Gasketed (CGR plates)

Placement Type: (E) End, (T) Tail

Filtration Area: 5.405 ft²

Chamber Volume: .255 ft³

Cake Size: 32mm

Feed Pressure: 100 PSI

Material of Construction: Virgin Polypropylene


*Delivery/Fabrication time for new plates is currently 6-7 weeks and subject to change.


For assistance in finding the correct filter plate for you, please do not hesitate to contact one of our representatives via telephone or e-mail.


To place an order, please fill out the corresponding plate forms and e-mail them to : sales@envirosolutions.com

Specifications

ManufacturerEnviro Solutions
ModelFPP-0800-G-E-T
ConditionNew
Size800mm
Chamber volume (ft³)0.255
Filtration area (ft²)5.405
Placement Type(E) End, (T) Tail
Plate typeGasketed (CGR)
Weight56.11 lbs. / 25.45 kg
PSI100
Cake Size (mm)32
