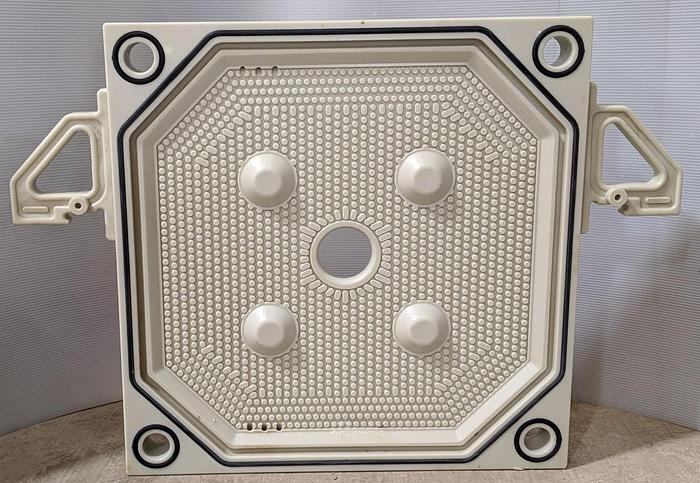

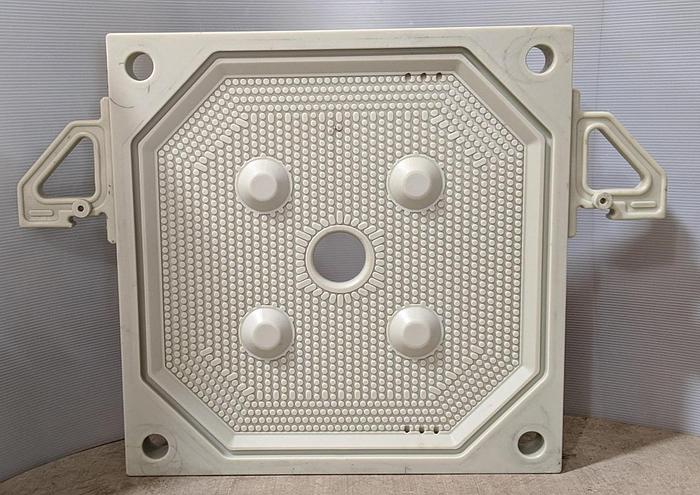

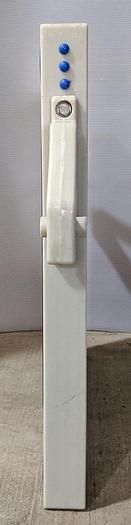

FPP-1000-G-I-3B: Filter Press Plate 1000mm CGR 3B

FPP-1000-G-I-3B: Filter Press Plate 1000mm CGR 3B

Contact us for price

San Antonio, TX

orCall +12106966300

Description

Model Code 1. Product FPP Filter Press Plate 2. Size 0470 470mm x 470mm x 54mm 0630 630mm x 630mm x 57mm 0800 800mm x 800mm x 57mm 1000 1000mm x 1000mm x 64mm 1200 1200mm x 1000mm x 57mm 1500 1500mm x 1500mm x 57mm 3. Plate Type G Gasketed (CGR plates) N Non-Gasketed (NCGR plates) 4. Type I Intermediate H Head Plate T Tail Plate 5. Configuration 1B 1 Button (Red) 3B 3 Button (Blue)

All Plates: Cake Size: 32mm, Feed Pressure: 225 PSI Material of Construction: Virgin Polypropylene

Specifications

ManufacturerEnviro Solutions
ModelFPP-1000-G-I-3B
ConditionNew
Size1000mm
TypeIntermediate - 3B Configuration
Plate typeGasketed (CGR)
Chamber volume (ft³)0.85
Filtration area (ft²)17.44
Weight66.14 lbs. / 30.0 kg
PSI100
Cake Size (mm)32
