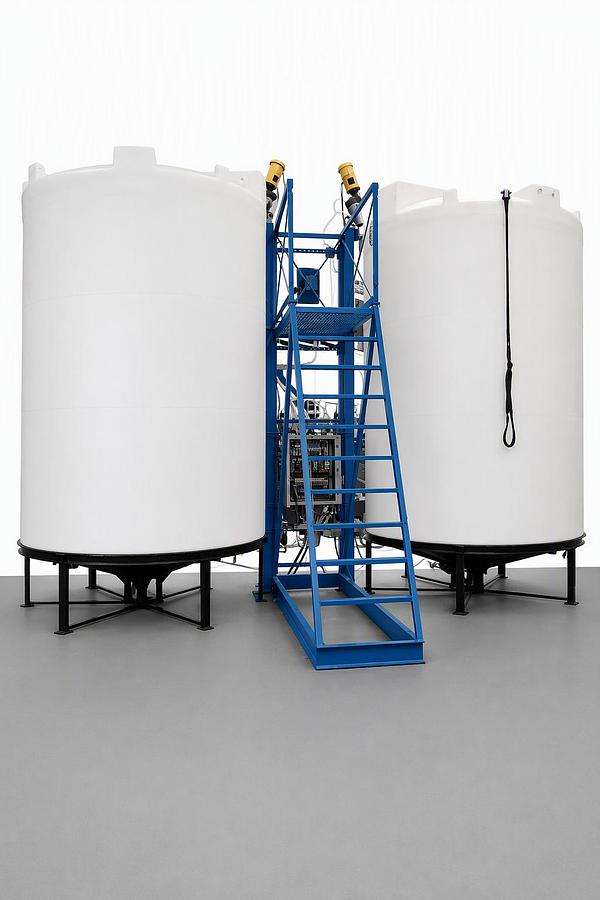

WWTS Batch Treatment 4900 Duplex Series

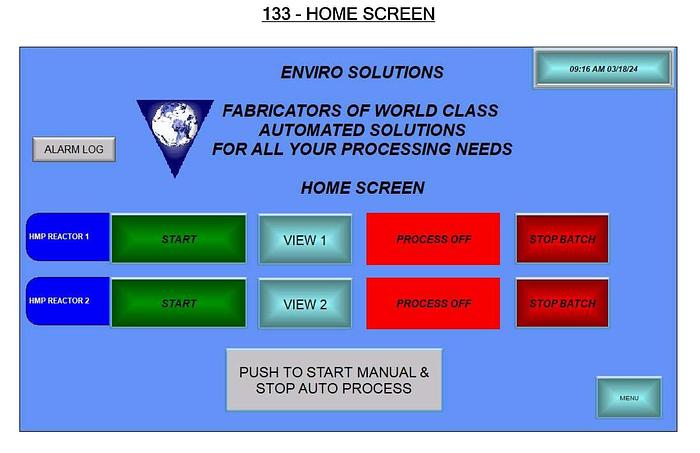

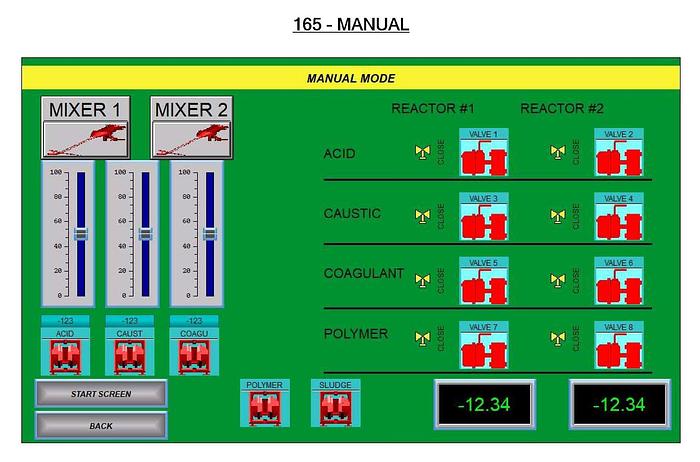

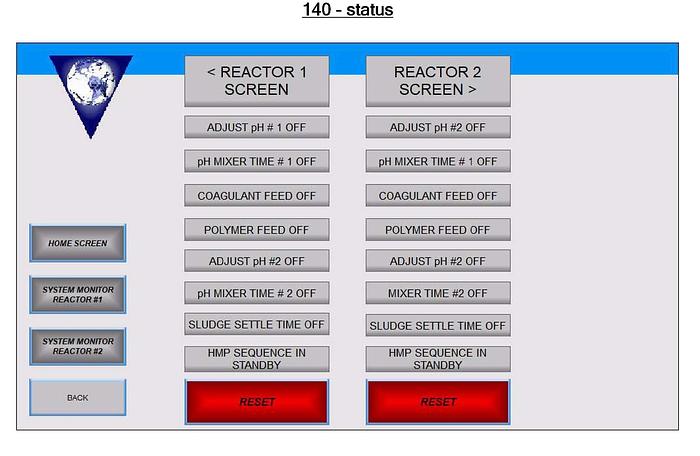

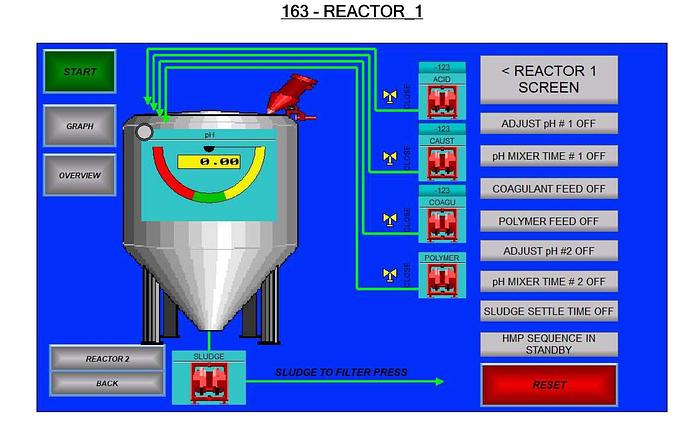

Our line of batch type wastewater treatment systems are strong and robust. They can process anywhere from 400 to 8,000 gallons per day all while maintaining an extremely small footprint. These systems and are built to last and work reliably day in and day out with no problems. Your unique system can be configured to treat cyanide, hexavalent chrome, and heavy metals, or any combination you desire. Touch screen PLC controls allow you to consistently treat your effluent to desired levels in English and Spanish.

*Each system has an expandable filter press integrated into the system, so sludge volume reduction and disposal are fast and easy.

Models of the BT-4900D Series Systems

BT-4900D-HMP: Heavy Metals Precipitation

BT-4900D-HMPCR: Heavy Metals Precipitation, Chrome Reduction

BT-4900D-HMPCN: Heavy Metals Precipitation, Cyanide Destruction

BT-4900D-HMPCRCN: Heavy Metals Precipitation, Chrome & Cyanide Destruction

(D) Duplex System; Dual tank

Tank Size: (2) 4,900 Gallons

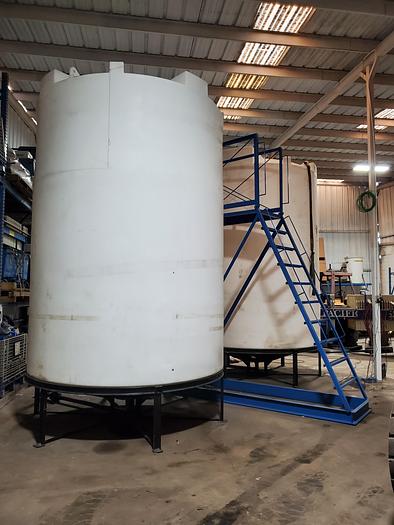

Tank Type: Cone Bottom / Dome Top

Batch Size Capacity: 7,840 Gallons

*GPM: 16.33

*GPM is based on 1 batch per 8 hour shift

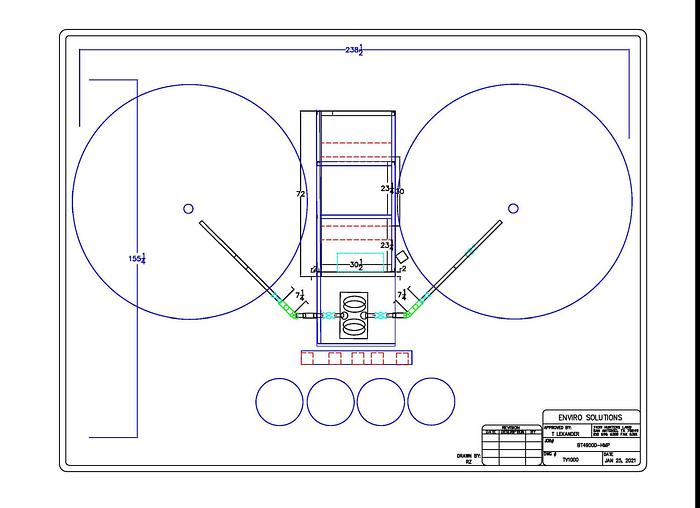

Approx Dimensions: 291"L x 102"W x 182"H

Following features may be included depending on your system:

Mixer with SS shaft and 304 SS 8” impellor

Air Diaphragm sludge pump

(1) Decant Valve

(2) True union ball valves on bottom of cone tank

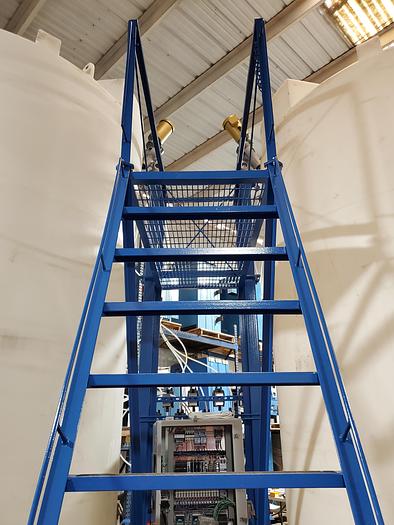

Stair tread and deck for cone bottom tank access

Skid mounted and piped

Operations manual in Spanish or English

If you would like a quote on a new custom-made batch type system, please fill out the Industrial Wastewater Treatment System Questionnaire as best you can and send it to so that we may better assist you.

*See the pdf below named 'WWTSForm-Eng.pdf' for the blank Industrial Wastewater Treatment System Questionnaire.


ManufacturerEnviro Solutions
Batch size7840 gallons
Tank size(2) 4900 gallons
Dimensions (in.)291"L x 102"W x 182"H
ContaminantsHeavy Metals Precipitation; Chrome; Cyanide;
