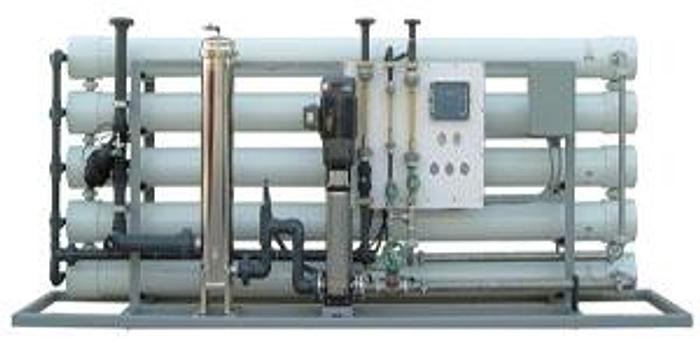

R48-08-3131100 Series Commercial RO Systems

R48-08-3131100 Series Commercial RO Systems

Contact us for price

Location:San Antonio, TX

orCall +1 (210) 696-6300

Description

Standard features Powder coated steel frame FRP multi-port pressure vessels Stainless steel pre-filter and cartridges Webtrol multi-stage centrifugal pump Automatic inlet valve Low-pressure shut-off with auto restart Tank level input Pretreatment interlock input Adjustable recycle line Pre-filter pressure gauges Pump discharge pressure gauge Flow meter for product, reject, & recycle water Check valve for product water Sample valves for product water On / off switch Four models for flow rates up to 100 GPM Additional features included R48 systems CI-2000 electronic controller with feed and product water conductivity meter and alarm output Programmable concentrate auto flush Note: Performance specifications are based on 77F feed water, 3 SDI or less, TDS below 1000 and a pH of 8. Please see water temperature conversion charts to determine actual production rate for each installation. Chlorine reduction and other pretreatment may be required. Membrane rejection rates are based on membrane manufacturer's specifications. Pre-filter is Flow-Max FM7X4 filter housing, constructed using 316 stainless steel and 2" MNPT pipe fittings and Flo-Pro FPMB5-40 melt blown filter cartridge. Systems are designed for use with municipal and well water. Membranes: 1:1

Specifications

ModelR48-08-3131100
ConditionNew
Dimensions198" x42" x72"
Feed water cnxn.2" Flange
Pump hp15/TEFC
Gal/min40.0
Recovery (adjustable)65% - 75%
Membrane size8" x 40"
Feed / drain req.*(gpm)62.0
Typical rejection0.98
Wt. (lbs.)2500.0
Feed water connectionSee below
Product water connection (40 & 60 gpm)2" Flange
Product water connection (80 & 100 gpm)2.5" Flange
Reject water connection1.5" Flange
Feed water pressure requirement (min.)20 PSIG
Drain requirement (maximum)See below
Electrical requirement460VAC/60Hz
Phase3
Amps (based on model)25, 30, 35, 40
